It exists in many different dimensions, it's flexibility allows us to adapt the product to the needs of the client, looking for the best version and dimension for each location, mantining an unified image.

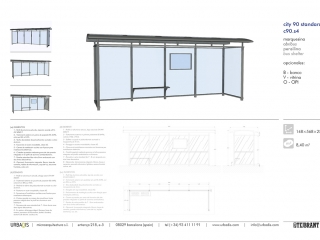

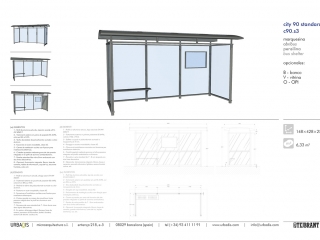

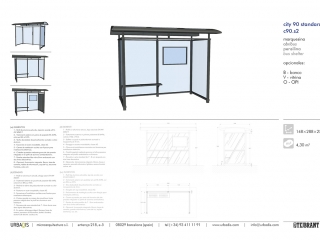

1 standard
Sides: 1400 mm
Sections: from 2 to 6 of 1400 mm.
Lengths: 2880 / 4280 / 5680 / 7080 / 8480
Width: 1480 mm.

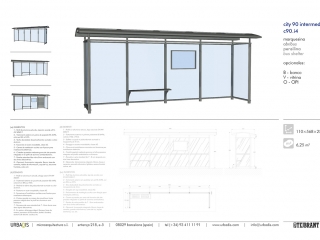

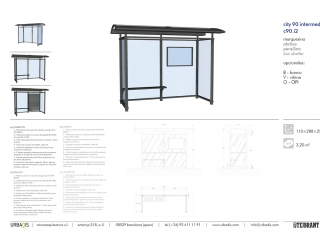

2 intermediary
Sides: 1030 mm
Sections: from 2 to 6 of 1400 mm.
Lengths: 2880 / 4280 / 5680 / 7080 / 8480
Width: 1110 mm.

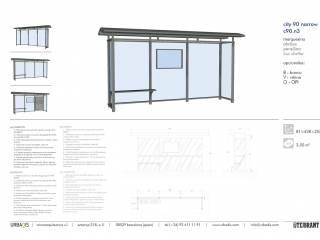

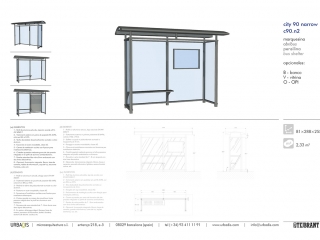

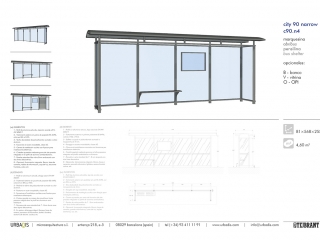

3 narrow
Sides: 730 mm
Sections: from 2 to 6 of 1400 mm.
Lengths: 2880 / 4280 / 5680 / 7080 / 8480
Width: 810 mm.
4 variant
Sides: 1 from 1400 and another from 730 8 1030 mm
Sections: of 2 and 3 of 1384 mm.
Measurements: 2848 / 4216 × 1480 mm.
5 cantilever
Lateral: none
Sections: from 2 to 6 from 1030 or 1400 mm.
Lengths: 2880 / 4280 / 5680 / 7080 / 8480
Width: 1480 mm.
6 Relaxation
Columns: Ø121 mm galvanized steel
Sections: from 2 to 6 of 1400 mm.
Lengths: 2880 / 4280 / 5680 / 7080 / 8480
Measurements: max light 5 m.
7 piazza t
Columns: Ø121 mm galvanized steel
Sections: from 2 to 6 of 1400 mm.
Measurements: max light 4,5 m, cantilever of 1 m, depth max. of 4 m.
8 piazza krona
Columns: Ø203 mm galvanized steel
Sections: of 2 and 3 of 1384 mm.
Measurements: max light 5,2 m, cantilever of 1 m, depth max. of 4 m.
Anodized aluminum profiles or painted with powder paint.
Pendant
vaulted ceiling in transparent or smoked polycarbonate of 4 mm.
Enclosure
tempered glass of 8 mm.
Drainage
the rainwater or melting water is channeled through the edge of the roof and has an outlet on each side.
Wall fixing
mounted on an existing concrete base (can be supplied prefabricated).
- Integrated lighting inside the ceiling
- electrical connection box
- benches in natural pine or aluminum
- display case
- bin and / or ashtray
- OPIS in lateral 1 or 2
- front sections for protection of: 730 mm, 1030 mm or 1400 mm.
- Corrosion resistance: 8 years
- Paint: 5 years
- Glasses and sealants: 5 years
- Electrical components: 2 years
The warranty does not cover failures occurring during transportation; incorrect assembly and/or assembly of the product, reconstruction of or additions to the original product; either damage caused by vandalism or accidents involving the product.
The warranty stipulates that a normal inspection and maintenance program must be followed.
CITY 90
it complements it.
